Simplicity Series Linear Actuators
| Max Horiz Payload | 18,750 lb (83,400 N) |
| Max Stroke | 3,454 mm (136 in) |
| Max Speed | 0.457 m/s (1.5 ft/s) |
42 Products
UG (SIMO) Series Actuators
| Max Horiz Payload | 360 lb (1,600 N) |
| Max Stroke | 1,400 mm (55 in) |
| Max Speed | 5.5 m/s (18 ft/s) |
17 Products
MTB Series Linear Actuators
| Max Horiz Payload | 1,686 lb (7,500 N) |
| Max Stroke | 6,000 mm (236.22 in) |
| Max Speed | 3 m/s (9.84 ft/s) |
12 Products
Compact Series Linear Actuators
| Max Horiz Payload | 1,202 lb (5,350 N) |
| Max Stroke | 1,000 mm (39 in) |
| Max Speed | 1.25 m/s (4 ft/s) |
10 Products
PLA Series Linear Actuators
| Max Horiz Payload | 285 lb (1,268 N) |
| Max Stroke | 2,710 mm (107 in) |
| Max Speed | 0.8 m/s (2.62 ft/s) |
3 Products
MUK Series Linear Actuators
| Max Horiz Payload | 2,517 lb (11,200 N) |
| Max Stoke | 2,710 mm (107 mm) |
| Max Speed | 0.8 m/s (2.6 ft/s) |
3 Products
Belt Driven Linear Actuator MTB042D-2250-12L12 Body Length: 2,250mm Cross Section: 42x42mm
$2,562.98
Belt Driven Linear Actuator length 2250mm with a profile of 42mm x 42mm
Profile Rail with 2 runner blocks per carriage
Length = 2250mm
Shaft Diameter = 12mm
Left Male
BLT DRV MTB 42x42x2250 LH MALE 12
$2,562.98
Belt Driven Linear Actuator MTB042D-1000-12L12 Body Length: 1,000mm Cross Section: 42x42mm
$1,686.50
Belt Driven Linear Actuator length 1000mm with a profile of 42mm x 42mm
Profile Rail with 2 runner blocks per carriage
Length = 1000mm
Shaft Diameter = 12mm
Left Male
BLT DRV MTB 42x42x1000 LH MALE 12
$1,686.50
Lead Screw Linear Actuator 16mm diameter with Round Anti-Backlash Nut and a NEMA 23 Motor. The screw has a 500mm length and a lead of 5mm.
Lead Screw
Round Anti-Backlash Nut
Length: 500mm
Diameter: 16mm
Lead: 5mm
Coating: PTFE
ASY LD SCR NUT LS 16x5x2 0500mm RCF
$238.94
Lead Screw Linear Actuator 12mm diameter with Round Anti-Backlash Nut and a NEMA 17 Motor. The screw has a 400mm length and a lead of 5mm.
Lead Screw
Round Anti-Backlash Nut
Length: 400mm
Diameter: 12mm
Lead: 5mm
Coating: PTFE
ASY LD SCR NUT LS 12x5x2 0400mm RCF
$195.41
Lead Screw Linear Actuator with Round Anti-Backlash Nut and a NEMA 17 Motor. The screw has a 500mm length, 12mm diameter and a lead of 5mm.
Lead Screw
Round Anti-Backlash Nut
Length: 500mm
Diameter: 12mm
Lead: 5mm
Coating: PTFE
ASY LD SCR NUT LS 12x5x2 0500mm RCF
$234.82
Lead Screw Linear Actuator 16mm diameter with Round Anti-Backlash Nut and a NEMA 23 Moto (56mm). The screw has a 400mm length and a lead of 5mm. Lead Screw Round Anti-Backlash Nut Length: 400mm Diameter: 16mm Lead: 5mm Motor: NEMA 23 (56mm) Coating: PTFE ASY LD SCR NUT LS..
$231.06
Lead Screw Linear Actuator 16mm diameter with Round Anti-Backlash Nut and a NEMA 23 Motor. The screw has a 300mm length and a lead of 1mm.
Lead Screw
Round Anti-Backlash Nut
Length: 300mm
Diameter: 16mm
Lead: 1mm
Coating: PTFE
ASY LD SCR NUT LS 16x1x1 0300mm RCF
$204.59
Lead Screw Actuator of 10mm diameter and 300mm length with NEMA 14 motor.
Length: 300mm
Screw Diameter: 10mm
Lead: 1mm
Thread Direction: Right Hand - Clockwise
Nut Type: Triangle Anti-Backlash Nut
Motor: NEMA 24
Coating: PTFE
ASY LD SCR NUT LS 10x1x1 0300mm TCF
$194.77
Lead Screw Actuator of 10mm diameter and 300mm length with NEMA 14 motor.
Length: 300mm
Screw Diameter: 10mm
Lead: 5mm
Thread Direction: Right Hand - Clockwise
Nut Type: Round Anti-Backlash Nut
Motor: NEMA 14
Coating: PTFE
ASY LD SCR NUT LS 10x5x2 0200mm RCF
$177.59
Lead Screw Linear Actuator with Round Anti-Backlash Nut and a NEMA 17 Motor. The screw has a 300mm length, 12mm diameter and a lead of 1mm.
Lead Screw
Round Anti-Backlash Nut
Length: 300mm
Diameter: 12mm
Lead: 1mm
Coating: PTFE
ASY LD SCR NUT LS 12x1x1 0300mm RCF
$178.24
Lead Screw Linear Actuator with a Non-Captive NEMA 14 motor and a triangle anti-backlash nut.
Linear Actuator
Non-Captive
NEMA 14 Motor
Screw Diameter: 100mm
Length: 400mm
Lead: 5mm
ASY LD SCR NUT LS 10x5x2 0400mm TCF
$211.94
Lead Screw Linear Actuator of 6mm diameter and 100mm length with a NEMA 8 motor.
Length: 100mm
Screw Diameter: 6mm
Lead:1mm
Nut Type: Round AntiBacklash Nut,
Motor: Nema 8 Motor (16mm)
Coating: PTFE
ASY LD SCR NUT LS 6x1x1 0100mm RCF
$190.91
Belt Driven Linear Actuator MTB105D-2250-25L12 Body Length: 2,250mm Cross Section: 105x105mm
$6,094.00
MTB105D-2250-25L12 - MTB Linear Belt Driven Actuator Series Driven to Excel in Larger Systems The MTB105D-2250-25L12 is an advanced, high-speed, belt-driven linear actuator designed for extensive use in multi-axis, medium- to large-sized Cartesian gantry systems. This actuator boasts a substantial length of 2250 mm and features a male shaft of..
$6,094.00
MTB105D-0850-25L12 - MTB Linear Belt Driven Actuator Series Driven to Excel in Larger Systems The MTB105D-0850-25L12 is a high-speed, belt-driven linear actuator designed for multi-axis, medium- to large-sized Cartesian gantry systems. This actuator, with an 850 mm length, is equipped with a male shaft of 25 mm diameter, mounted on..
$3,434.00
Belt Driven Linear Actuator MTB105D-1250-25F12 Body Length: 1,250mm Cross Section: 105x105mm
$4,194.00
MTB105D-1250-25F12 - MTB Linear Belt Driven Actuator Series Driven to Excel in Larger Systems The MTB105D-1250-25F12 is a versatile, high-speed, belt-driven linear actuator tailored for integration into medium- to large-sized Cartesian gantry systems. This actuator, with a length of 1250 mm, features a female shaft of 25 mm diameter. It..
$4,194.00
Miniature Ball Screw Linear Actuator with a Cylindrical Nut. The BSR0601ASRU-0150-CSN-111-NNN-N Ball Screw Motor assembly is a distinguished member of our miniature metric ball screw motor series designed for compact high-performance applications. This assembly includes a NEMA 11 motor, and features a cylindrical-style nut for a more streamlined design. This..
$150.00
Ball Screw Linear Actuator BSR0601ASRU-0150-CSN-080-NNN-N. The Grade 10 Ball Screw is a key part of our miniature metric ball screw motor series. Perfect for small-scale, high-precision applications, this model combines sleek design with robust functionality, featuring a cylindrical-style nut and compatibility with NEMA 08 motors. Features: Miniature metric ball screw..
$274.48
Ball Screw Linear Actuator BSR0601ASRU-0250-CSN-080-NNN-N. Includes a Grade 10 Ball Screw, and is an extension of our compact and powerful miniature metric ball screw motor lineup. Ideal for longer-range, precision-driven tasks, this model stands out with its extended length and adherence to high-quality standards, including a cylindrical-style nut and NEMA..
$277.09
Ball Screw Linear Actuator with a cylindrical nut is part of the miniature metric ball screw series. Includes a NEMA 11 motor, This assembly excels in applications requiring precise, compact, and efficient linear motion. It's designed to fit into specially tailored housings, ensuring that the assembly remains compact while preventing..
$250.00
High-precision miniature metric ball screw linear actuator with motor, optimized for compact applications requiring precise linear motion. It includes a NEMA 14 motor, designed for streamlined integration in tight spaces. Features: Part of the miniature metric ball screw series. Diameter: 6 mm; Lead: 1 mm; Length: 150 mm. Includes a..
$313.57

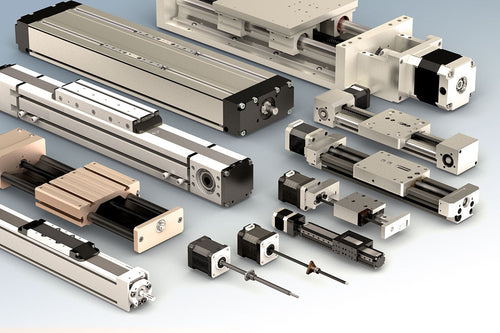

PBC Linear® manufactures linear actuators, including linear rails, shafts, carriages, bearings, screws, nuts, belts and other parts. The three primary drive mechanisms are Ball Screw Actuators, Lead Screw Actuators, and Belt Driven Actuators. We provide NEMA motors, motor mounts, or leave a stub for alternative energy sources. The motor size options are NEMA 8, 11, 14, 17, 23, 34 and 42.
In addition to the type of drive mechanism, linear actuators can be segmented by how the carriage or moving element operates, such as by a gliding slide on a rail, ball bearing profile rail, or via a flattop carriage on pillow block bearings gliding along shafts. Even further segmentation of Linear Actuators comes from the various screw diameter and lead sizes to choose from and from the choice of screw nut to use. There are cylindrical or flange nuts for ball screws and round or triangle nuts for lead screws with the further option of having Constant Force Anti-Backlash technology.
Three primary drive mechanisms:
- Ball Screw: the high end solution for heavy loads, precision and speed.
- Lead Screw: the cost effective solution with the best ability to lock in place
- Belt-Driven: Designed for high-speed applications with longer stroke lengths, offering low noise and smooth operation. They are ideal for tasks that require rapid positioning over extended distances.
Because of our closeness to many separate industries, our range now includes miniature linear actuators as small as 28 mm x 32 mm for space-constrained applications, heavy-duty actuators supporting loads up to 11,200 N, belt-driven actuators with stroke lengths as high as 6 meters, and high-speed actuators for rapid positioning tasks.
Features and Options include
- High precision or heavy load support
- Available in various NEMA motor sizes (NEMA 8, 11, 14, 17, 23, 34, 42).
- Multiple drive types: ball screw, lead screw, belt-driven systems.
- Customizable configurations to meet specific application requirements.
- Robust construction for demanding environments.
- Optional anti-backlash nuts and preloaded systems for enhanced precision.
- Maintenance-free operation with self-lubricating components.
- Capable of handling significant static axial and radial loads.
- Compact designs ideal for space-constrained applications.
- High-speed capabilities with smooth and precise linear motion.
- Available with various lead options and stroke lengths.
- Equipped with polymer wipers or seal strips to prevent contamination.
- Engineered to minimize noise for applications sensitive to sound.
- Options for precision control & advanced data collection with encoder feedback.
- Options for manual control with hand brakes or hand cranks.
- Operate effectively across extreme temperatures.
Learn more about PBC Linear actuators.
