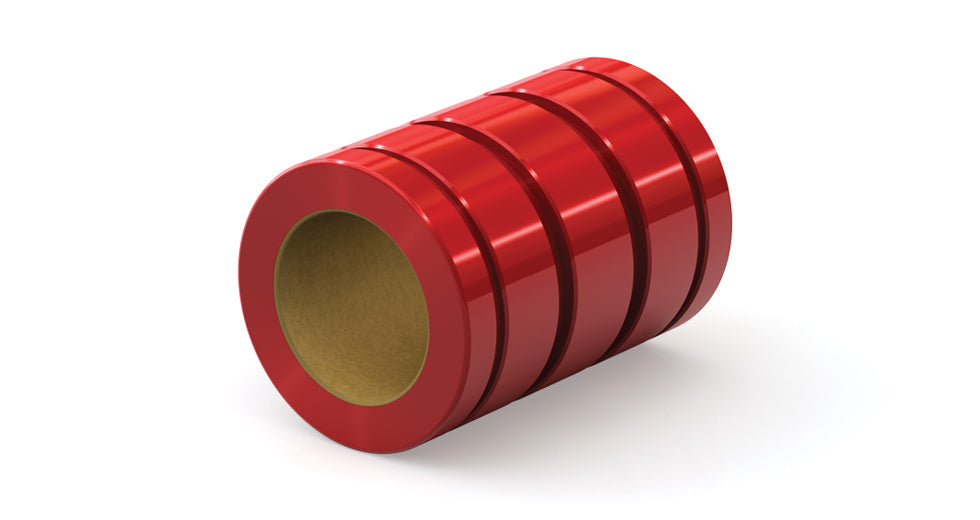

Closed Plain Linear Bearing 8mm ISO Metric ID (inner diameter) with a precision running clearance of 0.0005" per side. Straight outer diameter. Crowned self-aligning OD variants have FMA part numbers. Self-Lubricating Bearing Liner: FrelonGOLD® is standard; Optional liners include Frelon® J & Frelon® W (for FDA compliance) Temperature Rating: -400°F/+400°F or..
$15.48
Closed plain linear bearing with a one inch inner diameter Inch Series Precision running clearance 0.0005" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments Optional liners include corrosive chemical resistant Frelon® J & FDA Compliant Frelon® W Temperature Rating: -400°F/+400°F or -240°C/204°C Straight..
$37.61
Closed plain linear bearing with 0.750 inch inner diameter
Inch Series
Precision running clearance 0.0005" per side
Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments
Optional liners include corrosive chemical resistant Frelon®J & FDA Compliant Frelon®W
Straight outer diameter
$20.34
Inch Series Plain Linear Sleeve Bearing with a 1/4" ID (inner diameter) and a length of 1/2". The bushing is capable of both linear and rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® J & FDA approved Frelon® W Two Profiles Available: Sleeve Bearings and Flanged Sleeve..
$13.68
Closed plain linear bearing with 0.375 inch inner diameter
Inch Series
Precision running clearance 0.0005" per side
Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments
Optional liners include corrosive chemical resistant Frelon®J & FDA Compliant Frelon®W
Temperature Rating: -400°F/+400°F or -240°C/204°C
Straight outer diameter
$17.15
Compensated ID closed plain linear bearing with 1.5 inch inner diameter Inch Series Compensated running clearance 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments Optional liners include corrosive chemical resistant Frelon®J Another optional liner would be FDA Compliant Frelon®W Temperature Rating: -400°F/+400°F..
$72.51
Closed Plain Linear Bearing 3/4 Inch Inner Diameter with Crowned Self-Aligning Outer Diameter Inch Series Precision running clearance 0.0005" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments Optional liners include corrosive chemical resistant Frelon®J Another optional liner would be FDA Compliant Freon®W Temperature..
$22.36
Compensated Plain Linear Bearing with a square flange 3/4" ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the flange mounted bearing to perform like a linear ball bearing. Housing With Bearing Included Precision running clearance on the inner diameter, 0.0005” per..
$78.59
ISO Metric Series Plain Linear Sleeve Bearing has an 8mm ID (internal diameter) and a length of 12mm. The OD (outer diameter) is 12mm. The bushing is capable of both linear and rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® J & FDA approved Frelon® W Two..
$11.45
Inch Series 1/2" ID Open Pillow Block with a self-aligning housing, inside of which is a plain linear bearing with a straight outer diameter. The bearing's inner diameter (ID) is cut to maintain a compensated running clearance of 0.0015" per side, which can help to emphasize speed over precision, for..
$61.28
Closed Plain Linear Bearing of 0.250 Inch ID (inner diameter) with a compensated running clearance of 0.0015" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard; Optional liners include Frelon® J & Frelon® W (for FDA compliance) Temperature Rating: -400°F/+400°F or -240°C/204°C Inch Series - Metric part numbers begin with FM instead of FL..
$15.48
Plain Linear Bearing with a square flange 3/4" ID (inner diameter) Housing With Bearing Included Precision running clearance on the inner diameter, 0.0005” per side Spherical 'Self-aligning' I.D. in the housing. Self-aligning housing Standard Width Square Flange End Mount Inch Series Closed Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners..
$78.59
Simplicity® Flanged Sleeve Bearing - Plain Linear 1/2" ID (inner diameter) and 3/4" length. The last number in the part number represents the bushing length in eighths of an inch. Closed Plain Bushing Inch Series Round Flange End Mount Linear and Rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners..
$20.57
Inch Series Plain Linear Sleeve Bearing with a 1/4" ID (inner diameter) and a length of 3/8". The bushing is capable of both linear and rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® J & FDA approved Frelon® W Two Profiles Available: Sleeve Bearings and Flanged Sleeve..
$10.36
Compensated Inch Series 1" ID Closed Pillow Block with a self-aligning housing, inside of which is a plain linear bearing with a straight outer diameter. The bearing's inner diameter (ID) is cut to maintain a compensated running clearance of 0.0015" per side, which can help to emphasize speed over precision, for..
$88.64
Simplicity Flanged Plain Linear Sleeve Bearing with 1" ID (inner diameter) and 1.5" length. The last digit in the part number represents the bushing length in eighths of an inch. Closed Plain Bushing Inch Series Round Flange End Mount Linear and Rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners..
$37.54
Inch Series Plain Linear Sleeve Bearing with a 1/2" ID (inner diameter) and a length of 1". The bushing is capable of both linear and rotational movement Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® J & FDA approved Frelon® W Two Profiles Available: Sleeve Bearings and Flanged Sleeve..
$15.74
Inch Series 1" ID Open Pillow Block with a self-aligning housing, inside of which is a plain linear bearing with a straight outer diameter. The bearing's inner diameter (ID) is cut to maintain a compensated running clearance of 0.0015" per side, which can help to emphasize speed over precision, for..
$107.42
Inch Series 1" ID Open Pillow Block with a self-aligning housing, inside of which is a plain linear bearing with a straight outer diameter. The bearing's inner diameter (ID) is cut to maintain a precision running clearance with a shaft of 0.0005" per side. Standard Width Self-Lubricating Bearing Liner: FrelonGOLD®..
$107.42
Simplicity® Plain Linear Bearings are self-lubricating, maintenance-free, and perform exceptionally well in harsher environments. The patented PTFE liner provides low wear and minimal friction and requires no external lubrication.
Specifications for Simplicity Plain Linear Bearings:
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard;
- Optional liners include Frelon® J & Frelon® W
- Inch, metric and JIS sizing options
- Available in open, closed and thin-wall styles
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Maximum Horizontal Static Load: 2,165-100,500 lb (982- 45,586 kg)l
- Maximum Speed: Up to 8 m/s (315 in/s)
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Self-Lubricating: Provides oil-free operation
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
