Linear Sleeve Bearing - Round Flange PSFM1620-16 Bushing ...

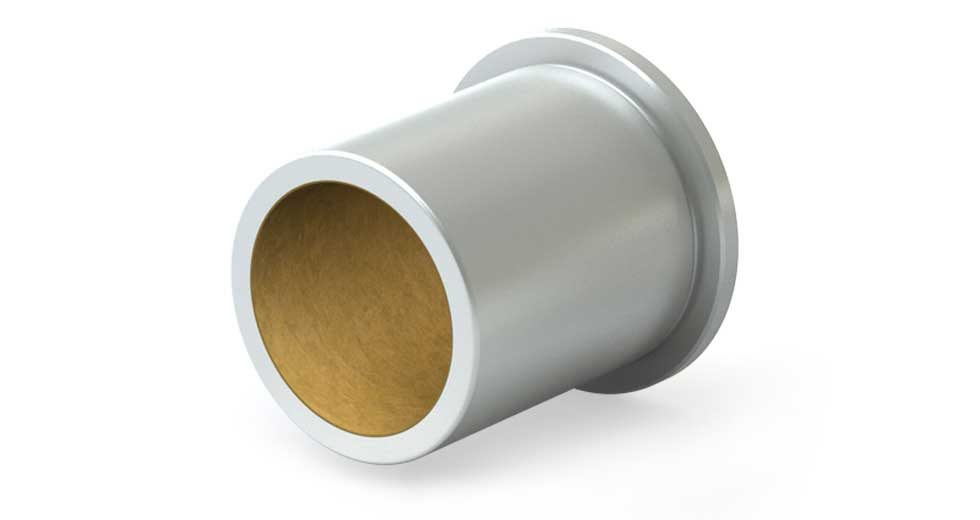

Linear Sleeve Bearing - Round Flange PSFM1620-16 Bushing ID: 16mm Length: 16mm

Flanged Linear Sleeve Bearing - PSFM1620-16 - ID size: 16mm ISO Metric Length: 16mm also

Linear and rotational movement

Specifications for Simplicity Plain Linear Sleeve Bearings:

  • Self-Lubricating Bearing Liner: FrelonGOLD® is standard
  • Optional liners include Frelon® J & FDA approved Frelon® W
  • Two Profiles Available: Sleeve Bearings and Flanged Sleeve Bearings
  • Temperature Rating: -400°F/+400°F or -240°C/204°C
  • ID Sizes: Available from 3/16” to 3” Inch Series, 6mm to 60mm Metric Series
  • Shell Material: Aluminum Alloy
  • Self-Lubricating: Provides oil-free operation
  • Vibration Damping: Ensures smooth and quiet operation

3D Models

TypeFileFormatLink
3dPSFM1620-16.htmlhtmlView
cadPSFM1620-16.x_tSolidWorks >=2006Download
$42.95
Ask about this product
Download Catalog
Configure CAD and Quote
Details
Dimensions
Videos
Resources

Additional Details

Category Details

Product Dimensions

weightwidthlengthheight
0.02 lbs1.07 in0.63 in1.07 in
