Square Linear Bearing - 1.5" four-sided adjustable ...

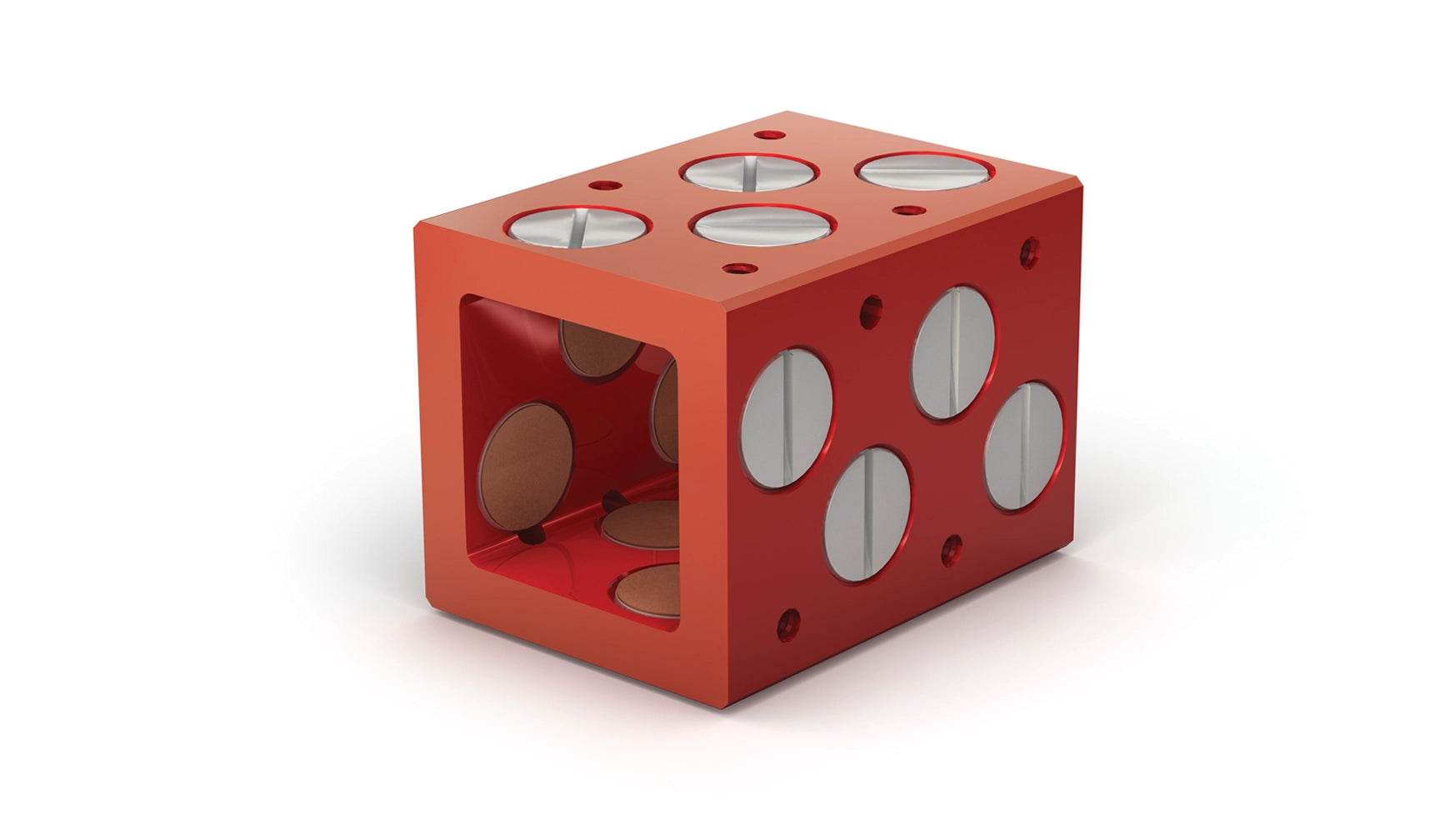

Square Linear Bearing - 1.5" four-sided adjustable square bearing with Frelon J plugs for stainless steel shafting. SB244E

  • Standard square bearing, Standard length of 4 in
  • Soft Shafting liner material
  • Adjustable plugs on four sides

3D Models

TypeFileFormatLink
3dSB244E.htmlhtmlView
cadSB244E.stepSTEP AP214Download
$186.18
Ask about this product
Download Catalog
Configure CAD and Quote
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
1.12 lbs2.31 in3.13 in2.31 in
