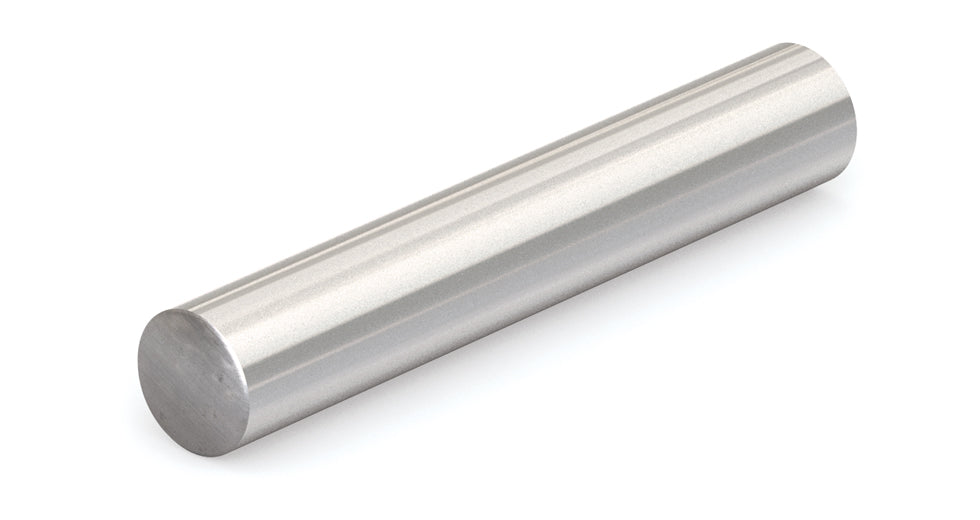

NIL20-012.000-SL

  • Alloy Steel shaft material
  • Consult factory for custom lengths

3D Models

TypeFileFormatLink
cadNIL20-012.dxfDXFDownload
cadNIL20-012.x_tSolidWorks >=2006Download
$28.50
Details
Dimensions
Videos
Resources

Category Details

The steel shafting is case hardened to RC60 and is suitable for use with Simplicity FrelonGOLD® lined bearings and linear ball bearings.

  • Inch and metric sizing options
  • Solid round or pre-drilled versions offer design flexibility
  • Custom end machining is available
  • RC 60 Plus case hardened steel shafting
  • Available cut-to-length or full lengths
  • Case hardened steel for optimum performance
  • Surface finish: 8-12 RMS
  • Diameter tolerance: Class L

Product Dimensions

weightwidthlengthheight
4.26 lbs1.25 in12 in1.25 in
Motion Control in Washdown Applications
Motion Control in Washdown Applications

3D Models

DXF
cadDownload
SolidWorks >=2006
cadDownload

Catalogs & Datasheets

Linear Shafting
datasheetOpen Link
Custom Machining Options for Shafts
datasheetOpen Link
