Simplicity RC60 Steel Linear Shafting
Linear Shaft - NIL10-024.000-SL 5/8" 1060 CS Steel I...

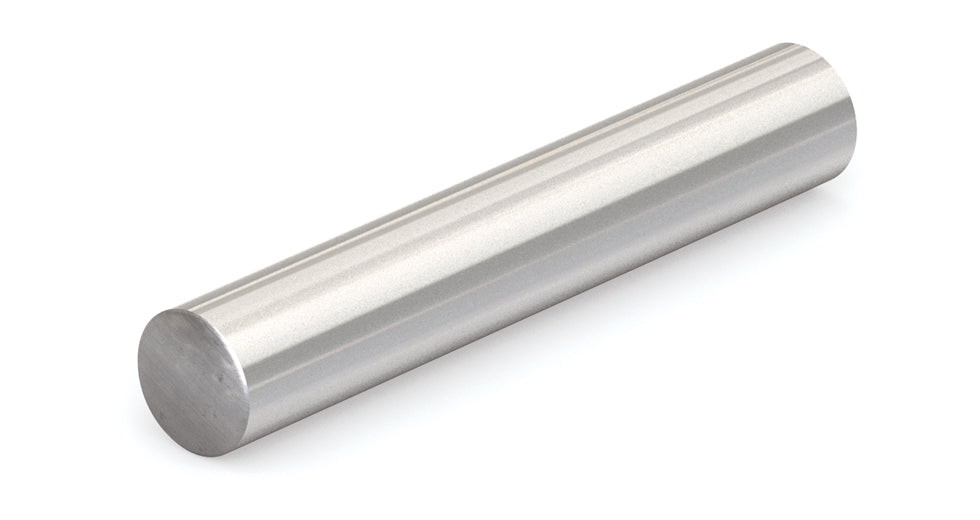

Linear Shaft - NIL10-024.000-SL 5/8" 1060 CS Steel Inch Class L Shaft Length: 024.000" Type: Specified Length

  • Alloy Steel shaft material
  • Consult factory for custom lengths

3D Models

TypeFileFormatLink
3dNIL10-024.htmlhtmlView
cadNIL10-024.dxfDXFDownload
cadNIL10-024.x_tSolidWorks >=2006Download
$25.76
Ask about this product
Download Catalog
Configure CAD and Quote
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
2.14 lbs0.63 in24 in0.63 in
