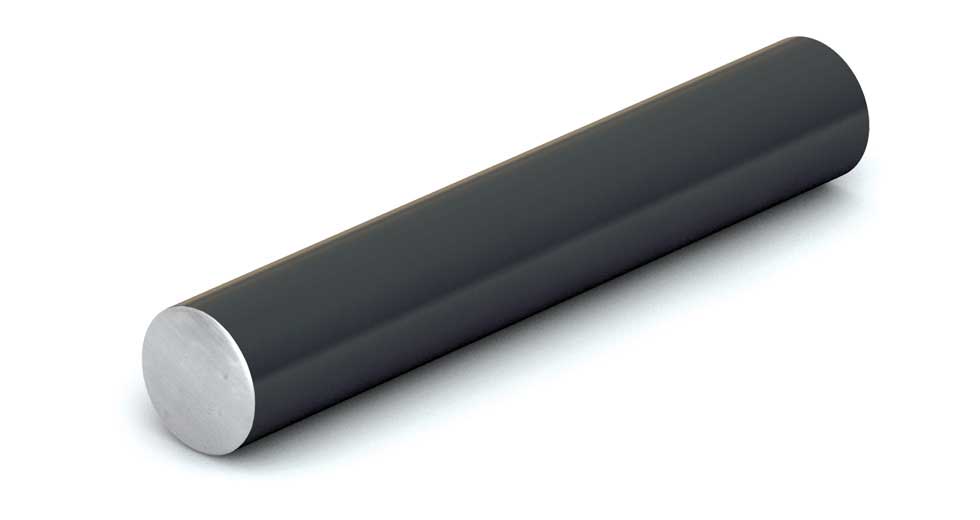

Linear Shaft - CCM50-0600-SL 50mm Ceramic Coated Aluminum Length: 600mm
For custom lengths, hole drilling, click the Configure CAD & Quote button below.
Feather Weight Linear Shaft of 50mm diameter and 600mm length. Ceramic Coated Aluminum specially made for the Simplicity® self-lubricating gliding plain linear bearing line or for other plain bearings. This is a solid shaft with no pre-drilling nor end-tapping, which means putting a threaded hole into either end of the shaft and is something we can do for a small extra fee via the Configuration button below.
- Not Drilled
- 600mm Length
- Consult factory for custom lengths, drilling and end-tapping
- Ceramic coated feather weight aluminum alloy base material
- Optimized for linear bearings with self-lubricating FrelonGOLD® liners
- Interchanges with solid and pre-drilled shafting
- Non-magnetic and vibration resistant
- Weld splatter, paints, and contaminants will not stick
- Ceramic coating provides hardness up to RC70
- Increased corrosion resistance
- ONLY use with plain linear slide bearings
- NOT to be used with linear ball bearings
- NOR roller bearing pillow block assemblies
