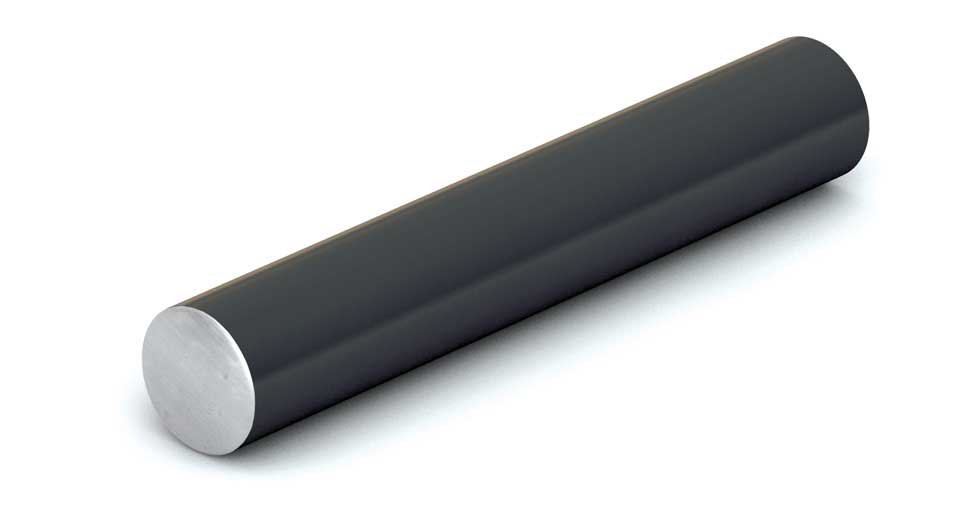

Linear Shaft - CC10-012.000-SL 5/8" Ø Ceramic Coated Aluminum Length: 12"
For custom lengths, hole drilling, click the Configure CAD & Quote button below.
Feather Weight Linear Shaft of 5/8" diameter and 12" length, consisting of Ceramic Coated Aluminum specially made for the Simplicity® self-lubricating plain slide linear bearing line or for other plain bearings.
- Not Drilled
- 12" Length
- Click "Configure CAD and Quote" below for custom lengths, non-standard drilling & end-tapping (threaded industry standard holes in one or both shaft ends)
- Ceramic coated feather weight aluminum alloy base material
- Optimized for linear bearings with self-lubricating FrelonGOLD® liners
- Interchanges with solid and pre-drilled shafting
- Non-magnetic and vibration resistant
- Weld splatter, paints, and contaminants will not stick
- Ceramic coating provides hardness up to RC70
- Increased corrosion resistance
- ONLY use with plain linear slide bearings
- NOT to be used with linear ball bearings
- NOR roller bearing pillow blocks
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | CC10-012.x_t | SolidWorks >=2006 | Download |
