Linear Bearings
Square Linear Bearings
Square Linear Bearing - 1.5" extended length, four-...

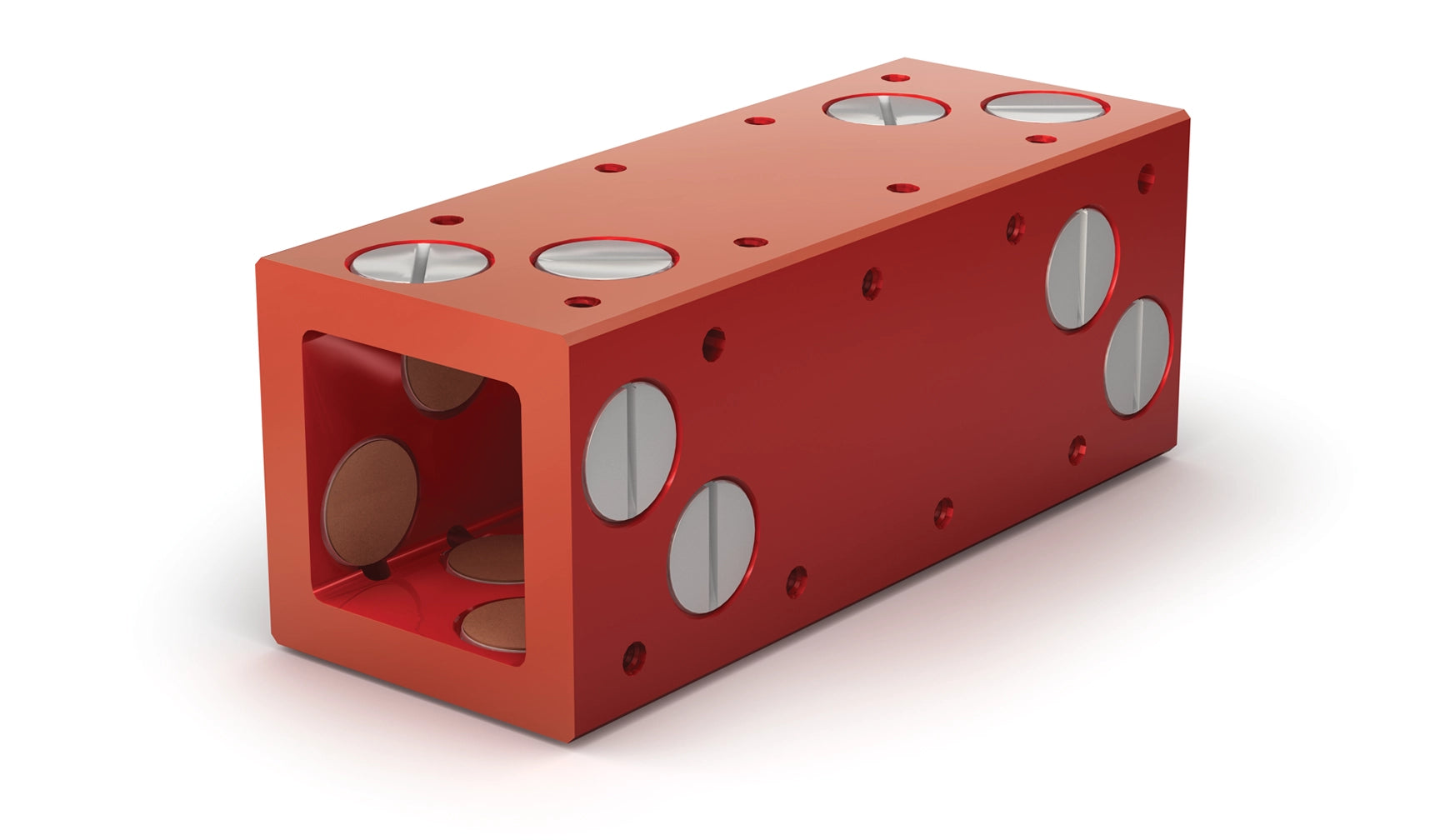

Square Linear Bearing - 1.5" extended length, four-sided adjustable square bearing with Frelon J plugs SBL244E
Square Linear Bearing - 1.5" extended length, four-sided adjustable square bearing with Frelon J plugs SBL244E

Square Linear Bearing - 1.5" extended length, four-sided adjustable square bearing with Frelon J plugs SBL244E

  • Standard square bearing, Extended Length of 6
  • Soft Shafting liner material
  • Adjustable plugs on four sides

3D Models

TypeFileFormatLink
3dSBL244E.htmlhtmlView
cadSBL244E.x_tSolidWorks >=2006Download
$204.80
Ask about this product
Download Catalog
Configure CAD and Quote
Details
Dimensions
Videos
Resources

Category Details

Square Bearings maintain radial integrity and can eliminate the need for parallel shafting.

  • Only available in inch sizing
  • Available in two different sizes and 2-sided and 4-sided versions
  • Replaceable bearing plugs can be purchased separately
  • Available with Frelon J or FrelonGOLD liner®
  • Housings are anodized aluminum
  • Static Load Capacities up to 1,840 lb (8,185 N)
  • Can be mounted in any orientation

Product Dimensions

weightwidthlengthheight
1.84 lbs2.31 in6 in2.31 in
